Leveling Foot 30 Compact
Part. N° 21.2524
CAD DOWNLOAD ► 3D STEP | | Inventor 2024
| APPLICATIONS |
|---|

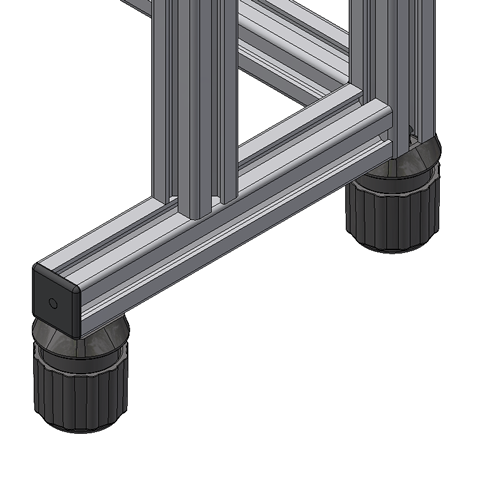

| - Economical leveling for smaller frames made from 30x30 profile |
| - Rotate base by hand to level frame |

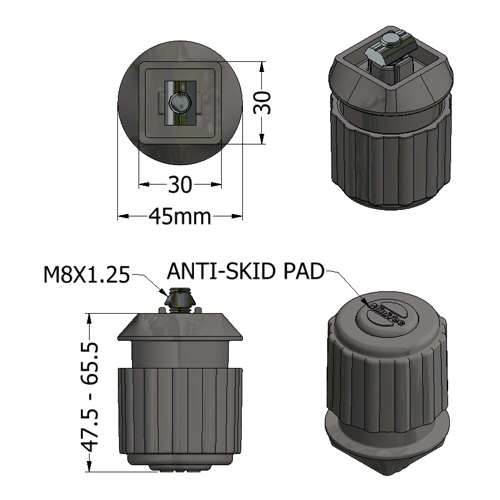

| TECHN. DATA / ITEMS SUPPLIED | |
|---|---|
| - Plastic leveler with rubber anti-skid pad | |
| - M8 zinc plated steel stud & 30 series t-nut | |
| - 18mm (.71") adjustment | |
| - Load max. | - 100kg (220 lbs) |
| - Weight | - .121 kg |
| ASSEMBLY |
|---|
| - Thread profile end with a M8x1.25 forming tap to accept stud |

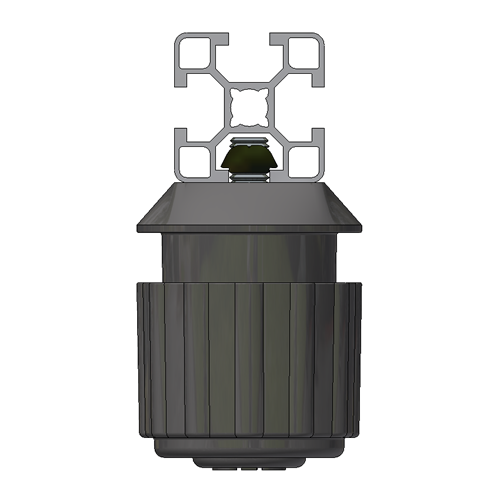

| - Fasten directly to 30series t-slot using supplied M8 nut. |
